Fields of Application

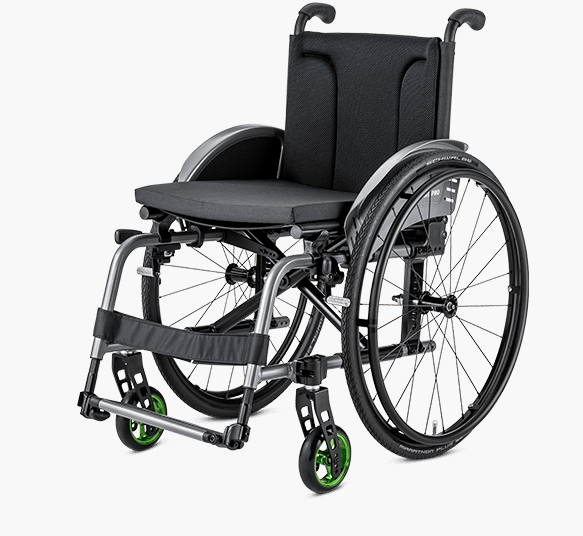

• Low cost and economic active folding wheelchair with a continuous frame and integrated footrests
• Compatibility for Meyra building block system
• User weight upto 135 kg and seat width 58 cm
• Adaptive wheelchair for daily use
• Longterm care with high adaptation needs
• Well-suited for many disease patterns
• For spinal paralysis care

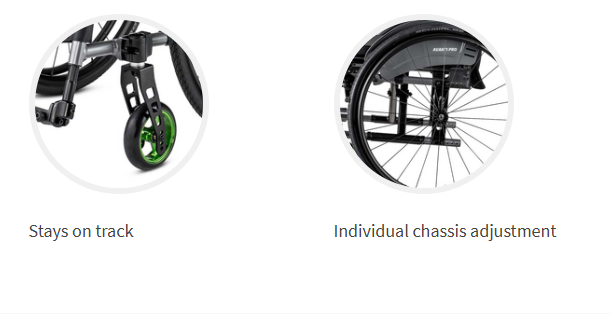

Adjustment

• 2 frame lengths
• Seat width 36 - 58 cm
• Seat depths 35 - 50 cm
• Back height 34 - 44 cm
• The maximum possible seat height difference from front seat height to back seat height is 7 cm
• Four center of gravity settings selectable
• 3° wheel camber possible (optional)

Operation

• With the adjustment possibilities the user can propel the manual wheelchair with the handrims
• The wheelchair can be folded for transport and the wheels are removable
• The wheelchair can be braked with pressure or drum brakes

Options

• Anti tip wheel
• Transit castors
• Height adjustable push handles
• Stabilising bar
• Seat belt
• Therapy table
• Sliding board
• Crutch holder
• Brake lever extension
• Seat cushion
• Drum brakes
